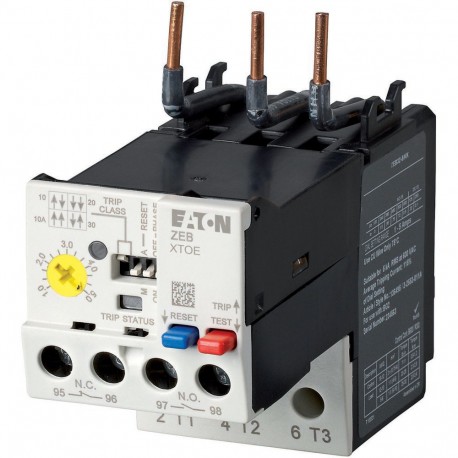

ZEB65-45 136502 Y7-136502 EATON ELECTRIC Overload relay, electronic, 9-45A
ZEB65-45
136502
Y7-136502
EATON - MOELLER
1 Pcs.
Automation > Electronic overload relay
Electronic Circuit Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as an essential safeguard in motor control circuits, this Eaton Moeller ZEB65-45 overload relay, electronic, 9-45A continuously monitors current levels to protect heavy-duty machinery from thermal damage caused by overloads or phase loss. Such solid-state relays mount directly onto compatible contactors within industrial cabinets to interrupt power before excessive heat ruins internal motor windings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Direct attachment
- Type of electrical connection of main circuit (EF006819): Screw connection
- Adjustable current range (EF008211): 9 A
- External power supply required (EF003292): No
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 0 V
- Voltage type (operating voltage) (EF005294): AC
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Release class (EF006668): Adjustable
- Reset function automatic (EF011941): Yes
- Reset function input (EF011940): No
- Reset function push-button (EF011942): Yes
- Width (EF000008): 45 mm
More info
▲General specifications
UL Category Control No.: NKCR
UL 508
IEC/EN 60947-4-1
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 14
CSA File No.: 2290956
UL
CSA
UL File No.: E1230
Features & Functions
General
Direct attachment
6000 V (auxiliary circuits)
15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
1 x (4 - 16) mm², Main cables
2 x (18 - 12), Control circuit cables
2, Terminal screw, Pozidriv screwdriver
7 lb-in, Screw terminals
Electrical rating
180 A, Class J, max. Fuse, SCCR (UL/CSA)
R300, DC operated (UL/CSA)
Contacts
Design verification
ETIM only
Automatic
