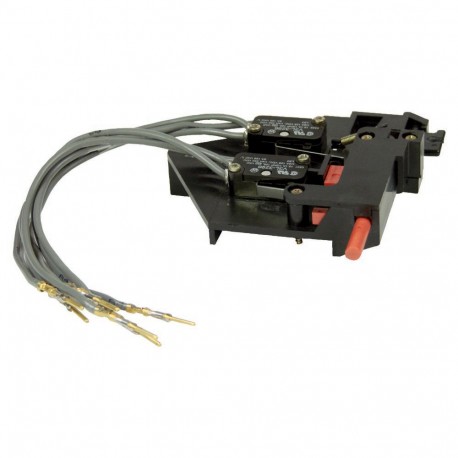

EATON - MOELLER IZM-OTS IZM-OTS 122960 Y7-122960 EATON ELECTRIC Signalling switch tripped, 2W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZM-OTS 122960 Y7-122960 EATON ELECTRIC Signalling switch tripped, 2W

IZM-OTS

122960

Y7-122960

EATON - MOELLER

1 Pcs.

Signalling switch tripped, 2W IZM-OTS Signalling contact, off-hook, 2W Auxiliary switch, Trip-indicating auxiliary switch, For use with: IZM20, 32, 40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71

Automation > Auxiliary contact block
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

IZM-OTS 122960 Y7-122960 EATON ELECTRIC Signalling switch tripped, 2W is a trip-indicating signaling switch designed to integrate into heavy electrical distribution protection systems. This device provides immediate status feedback whenever a protective breaker experiences a trip event.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Integrable

More info

▲
Signalling switch tripped, 2W
Eaton Catalog No.
2A11703G01
EL-Nummer (Norway)
4357838
Auxiliary switch, Trip-indicating auxiliary switch, For use with: IZM20, 32, 40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
[

Delivery program

Accessories
Trip indication / Reset options
Accessories
Trip-indicating auxiliary switch
For use with
IZM20, 32, 40, 63…
Instructions
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
]
