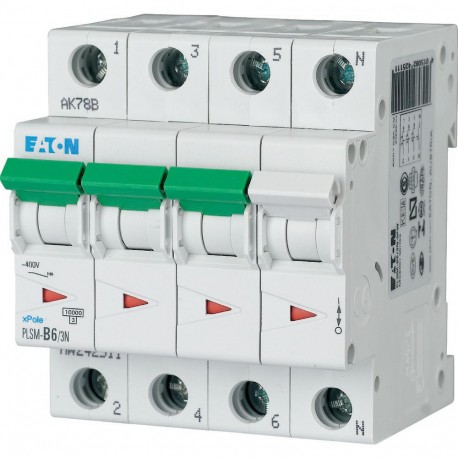

PLSM-B6/3N-MW 242511 Y7-242511 EATON ELECTRIC Over current switch, 6A, 3pole+N, type B characteristic
PLSM-B6/3N-MW
242511
Y7-242511
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The PLSM-B6/3N-MW 242511 Y7-242511 EATON ELECTRIC Over current switch, 6A, 3pole+N, type B characteristic acts as a multi-pole miniature circuit breaker used to protect electrical installations against overcurrents and short circuits. These protective switches are widely utilized in commercial buildings and industrial control panels to maintain system safety. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 6 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 5.7 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
Product specifications
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Concurrently switching N-neutral
Miniature circuit breaker
