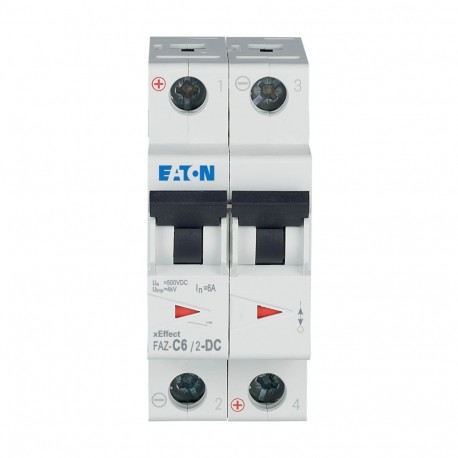

FAZ-C6/2-DC 279137 Y7-279137 EATON ELECTRIC Over current switch, 6A, 2p, C-Char, DC current
FAZ-C6/2-DC
279137
Y7-279137
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Direct current protection requirements in automation setups are addressed by the Eaton Moeller FAZ-C6/2-DC over current switch. These devices are designed to handle the distinct electrical properties of DC circuits, disconnecting power safely during fault conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 6 A
- Rated voltage (EF000228): 250 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 2.3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
EN45545-2
IEC 61373
Delivery program
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
Design verification as per IEC/EN 61439 - technical data
Additional information
FAZ-DC
FAZ-DC
