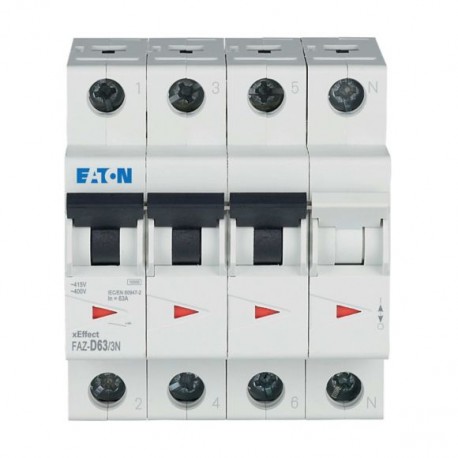

FAZ-D63/3N 115381 Y7-115381 EATON ELECTRIC Over current switch, 63A, 3pole+N, type D characteristic
FAZ-D63/3N
115381
Y7-115381
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Eaton Moeller, the FAZ-D63/3N is an over current switch configured to manage electrical loads and protect distribution networks from overcurrent scenarios. Multi-pole protective switches with integrated neutral switching are widely applied in commercial installations to ensure comprehensive phase and neutral isolation during faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): D
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 21.6 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
Additional equipment possible
FAZ
