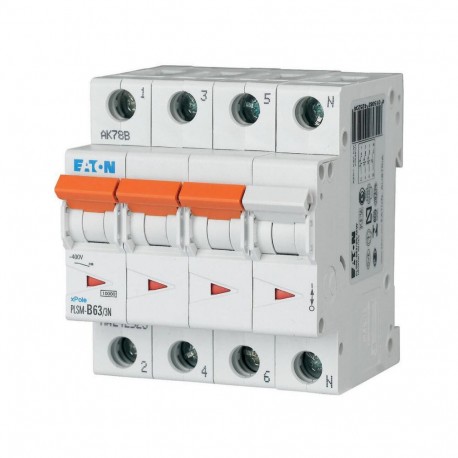

PLSM-B63/3N-MW 242523 Y7-242523 EATON ELECTRIC Over current switch, 63A, 3pole+N, type B characteristic
PLSM-B63/3N-MW
242523
Y7-242523
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for professional electrical installations, overcurrent switches interrupt abnormal current loads to prevent damage to distribution wiring and connected machinery. This Eaton Moeller PLSM-B63/3N-MW unit ensures reliable multi-pole protection in industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 18.6 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
Delivery program
- Miniature circuit breaker
- PLSM
Technical data - electrical
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Additional equipment possible
PLSM
