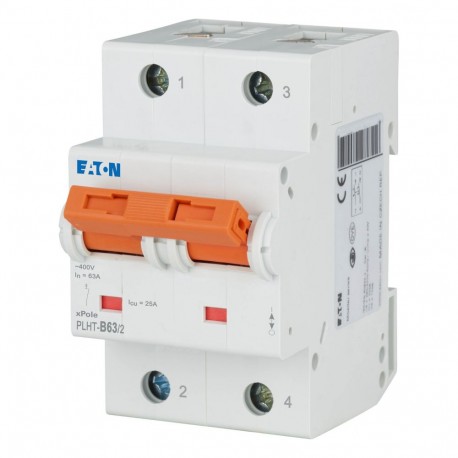

PLHT-B63/2 248003 EATON ELECTRIC Over current switch, 63A, 2p, B-Char, AC
PLHT-B63/2
248003
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An over current switch protects electrical circuits by interrupting current flow whenever load limits are exceeded due to overloads or faults. These heavy-duty switching devices are commonly installed in industrial distribution switchboards to safeguard heavy electrical loads and downstream equipment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 75 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
