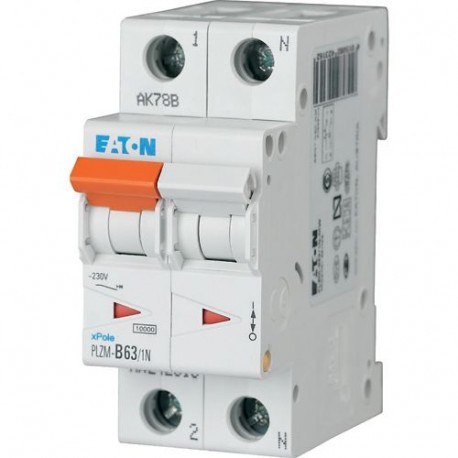

PLZM-B63/1N-MW 242316 Y7-242316 EATON ELECTRIC Over current switch, 63A, 1pole+N, type B characteristic
PLZM-B63/1N-MW
242316
Y7-242316
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Safeguarding electrical circuits from damaging fault currents and thermal overloads, the Eaton Moeller PLZM-B63/1N-MW 242316 Y7-242316 EATON ELECTRIC Over current switch, 63A, 1pole+N, type B characteristic operates as a dependable safety device in distribution systems. These modular protective switches are commonly mounted inside control enclosures to automatically disconnect power during electrical anomalies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
More info
▲General specifications
Product specifications
Miniature circuit breaker
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Additional equipment possible
