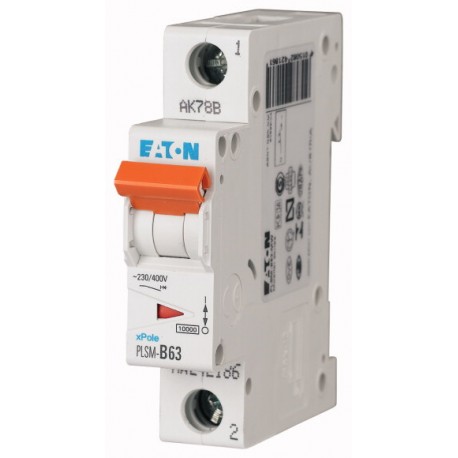

EATON - MOELLER PLSM-D63-MW PLSM-D63-MW 113095 Y7-113095 EATON ELECTRIC Over current switch, 63A, 1p, type D characteristic View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLSM-D63-MW 113095 Y7-113095 EATON ELECTRIC Over current switch, 63A, 1p, type D characteristic

PLSM-D63-MW

113095

Y7-113095

EATON - MOELLER

1 Pcs.

Over current switch, 63A, 1p, type D characteristic PLSM-D63-MW Miniature circuit breaker (MCB), 63 A, 1p, characteristic: D High-quality miniature circuit breaker, contact position indicator red - green, terminal rear plug protection, tri-stable slide catch - enables removal from existing busbar system, comprehensive range of accessories suitable for subsequent installation, rated operational currents up to 63 A, tripping characteristics B, C, D, rated switching capacity according to IEC/EN 60898-1: 10 kA, Switchgear for residential and commercial applications

Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
