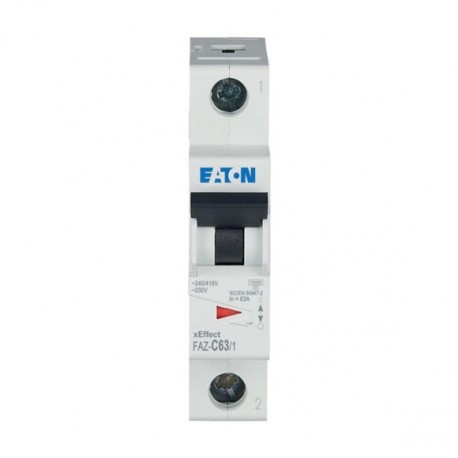

FAZ-C63/1 278567 Y7-278567 EATON ELECTRIC Over current switch, 63A, 1p, C-Char, AC
FAZ-C63/1
278567
Y7-278567
EATON - MOELLER
12 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller FAZ-C63/1 over current switch acts as a single-pole protective device designed to isolate electrical circuits during overloads or short-circuit events. Industrial control panels and distribution boards depend on these reliable switches to maintain operational safety and prevent equipment damage.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 5.5 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
IEC/EN 60898
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
