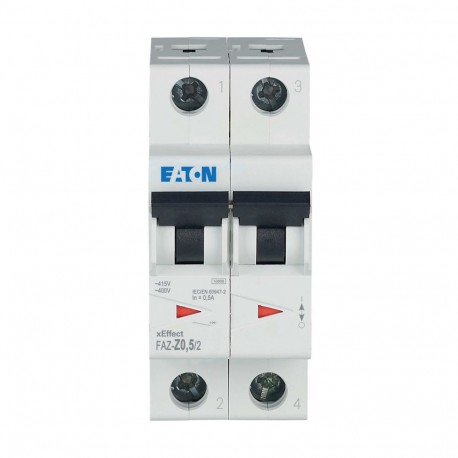

FAZ-Z0,5/2 278816 Y7-278816 EATON ELECTRIC Over current switch, 0,5A, 2p, Z-Char, AC
FAZ-Z0,5/2
278816
Y7-278816
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller FAZ-Z0,5/2 is an over current switch utilized to protect electrical circuits against overloads and short circuits in industrial and commercial distribution panels. These protective devices automatically interrupt fault currents to prevent damage to downstream wiring and connected equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): Z
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 0.5 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 6.3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
UL (File No. E177451)
IEC/EN 60947-2
CSA (Class No. 3215-30)
IEC/EN 60898
CSA (File No. 204453)
CE marking
UL (Category Control Number QVNU2, QVNU8)
CSA-C22.2 No. 235
UL 1077
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20
IP40 (when fitted)
UL/CSA Type: -
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
