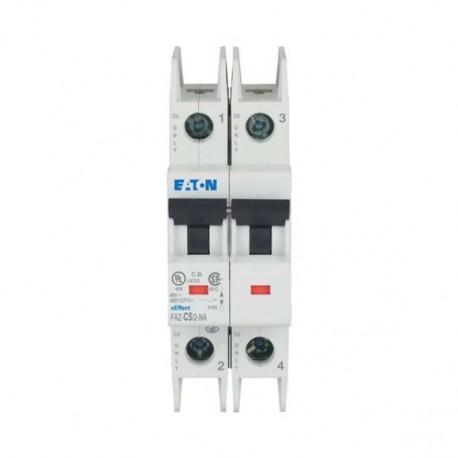

FAZ-C5/2-NA 102163 Y7-102163 EATON ELECTRIC Miniature circuit breaker (MCB), 5A, 2p, C-Char, AC
FAZ-C5/2-NA
102163
Y7-102163
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The FAZ-C5/2-NA 102163 Y7-102163 EATON ELECTRIC Miniature circuit breaker (MCB), 5A, 2p, C-Char, AC provides dependable two-pole protection for alternating current circuits. These breakers are commonly integrated into control enclosures to protect specific machinery control loops from overload conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 5 A
- Rated voltage (EF000228): 415 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 3.2 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
IEC/EN 60947-2
Specially designed for North America, suitable as BCPD
North America (UL listed, CSA certified)
IEC 60947-2
CSA (File No. 204453)
CSA-C22.2 No. 5-09
UL 489
CSA (Class No. 1432-01)
CE marking
UL (Category Control Number DIVQ)
UL 489, CSA C22.2 No. 5
EN45545-2
IEC 61373
Delivery program
- FAZ-NA
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
IP20
UL/CSA Type: -
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
Max. 2.4 Nm
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
Design verification as per IEC/EN - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ-NA
