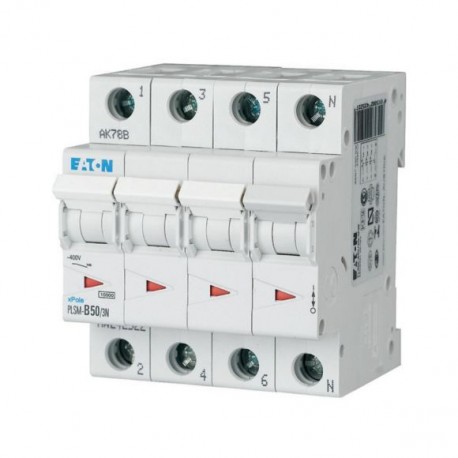

PLSM-C50/3N-MW 242548 Y7-242548 EATON ELECTRIC Over current switch, 50A, 3pole+N, type C characteristic
PLSM-C50/3N-MW
242548
Y7-242548
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller PLSM-C50/3N-MW is an over current switch designed to safeguard electrical circuits against overloads and short circuits by automatically interrupting current flow during fault conditions. This type of protective device is widely deployed in commercial and industrial power distribution panels to protect branch circuits and connected equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 50 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 15 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
Delivery program
- Miniature circuit breaker
- PLSM
Technical data - electrical
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Concurrently switching N-neutral
Miniature circuit breaker
