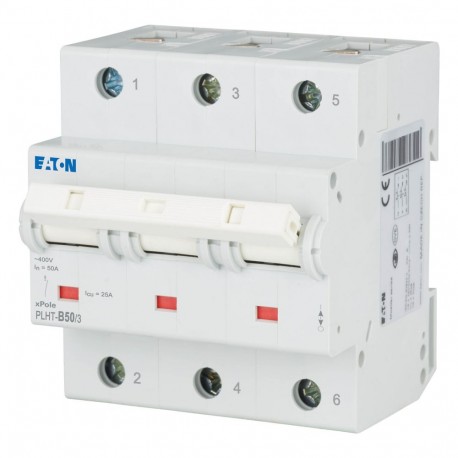

PLHT-B50/3 248028 EATON ELECTRIC Over current switch, 50A, 3p, B-Char, AC
PLHT-B50/3
248028
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller PLHT-B50/3 over current switch offers dependable protection for electrical distribution networks by interrupting abnormal current flows and short circuits. These protective switches are commonly implemented in industrial switchgear configurations to safeguard heavy-duty loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 75 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 50 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
