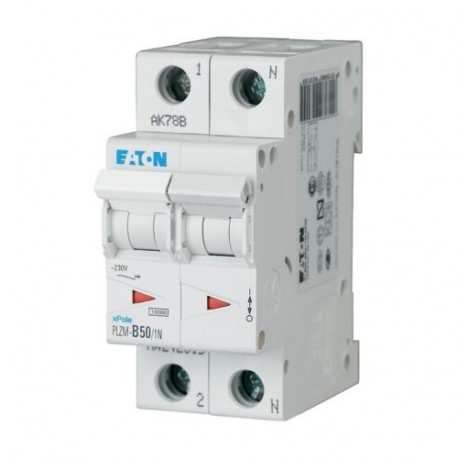

PLZM-B50/1N-MW 242315 Y7-242315 EATON ELECTRIC Over current switch, 50A, 1pole+N, type B characteristic
PLZM-B50/1N-MW
242315
Y7-242315
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller over current switch (PLZM-B50/1N-MW) protects distribution lines and connected electrical loads against overloads and short circuits in commercial and industrial electrical distribution setups. Devices of this type are widely deployed in modern switchboards to safeguard wiring and prevent equipment damage by interrupting faulty circuits automatically.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 50 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
More info
▲General specifications
Product specifications
Miniature circuit breaker
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Additional equipment possible
