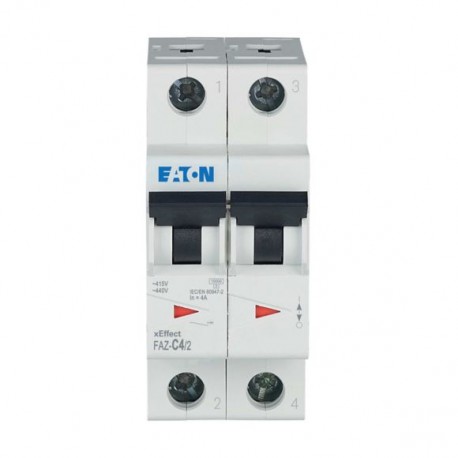

FAZ-C4/2 278752 Y7-278752 EATON ELECTRIC Over current switch, 4A, 2p, C-Char, AC
FAZ-C4/2
278752
Y7-278752
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Safeguard industrial control circuits against fault currents using this Eaton Moeller over current switch, 4A, 2p, C-Char, AC. Modular circuit breakers protect downstream equipment by breaking electrical contact automatically during overload and short-circuit conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 4 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
North America (UL recognized, CSA certified)
UL (File No. E177451)
IEC/EN 60898
CE marking
CSA-C22.2 No. 235
CSA (Class No. 3215-30)
UL 1077
UL (Category Control Number QVNU2, QVNU8)
IEC/EN 60947-2
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
UL/CSA Type: -
IP20 (IEC)
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
