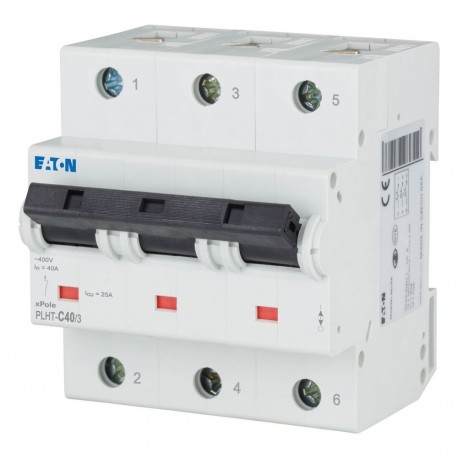

PLHT-C40/3 248036 0001609523 EATON ELECTRIC Over current switch, 40A, 3p, C-Char, AC
PLHT-C40/3
248036
0001609523
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The PLHT-C40/3 248036 0001609523 EATON ELECTRIC Over current switch, 40A, 3p, C-Char, AC functions as a multi-pole protective breaker engineered to automatically disconnect power supply lines during sustained overloads or short circuits. These devices are standard installations in industrial electrical distribution architectures to protect upstream equipment and wiring. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 75 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 40 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
