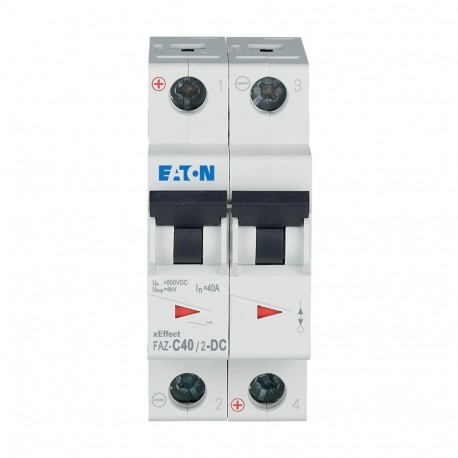

FAZ-C40/2-DC 279144 Y7-279144 EATON ELECTRIC Over current switch, 40A, 2p, C-Char, DC current
FAZ-C40/2-DC
279144
Y7-279144
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller FAZ-C40/2-DC over current switch functions as an essential protective device designed to interrupt direct current circuits during overload or short-circuit conditions. These specialized breakers are commonly utilized in renewable energy systems, battery banks, and DC control architectures to prevent equipment failure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 40 A
- Rated voltage (EF000228): 250 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 8.1 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
EN45545-2
IEC 61373
Delivery program
Technical data - electrical
Technical data - mechanical
IP20
Design verification as per IEC/EN 61439 - technical data
Additional information
Miniature circuit breaker
FAZ-DC
Miniature circuit breaker
FAZ-DC
