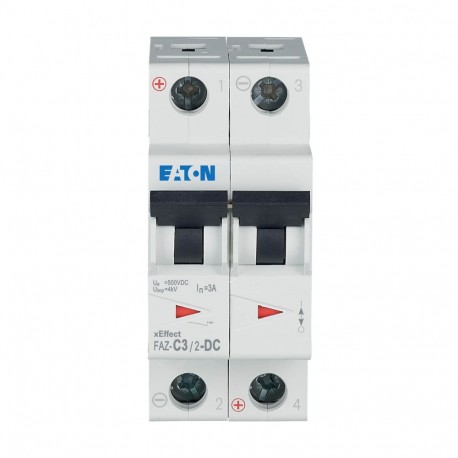

FAZ-C3/2-DC 279135 Y7-279135 EATON ELECTRIC Over current switch, 3A, 2p, C-Char, DC current
FAZ-C3/2-DC
279135
Y7-279135
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller FAZ-C3/2-DC is an over current switch engineered specifically for direct current (DC) applications to protect circuits against fault conditions and overloads. These specialised breakers provide safe interruption capabilities in DC distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 3 A
- Rated voltage (EF000228): 250 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 2.3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
EN45545-2
IEC 61373
Delivery program
Technical data - electrical
Technical data - mechanical
IP20
Design verification as per IEC/EN 61439 - technical data
Additional information
Miniature circuit breaker
Miniature circuit breaker
