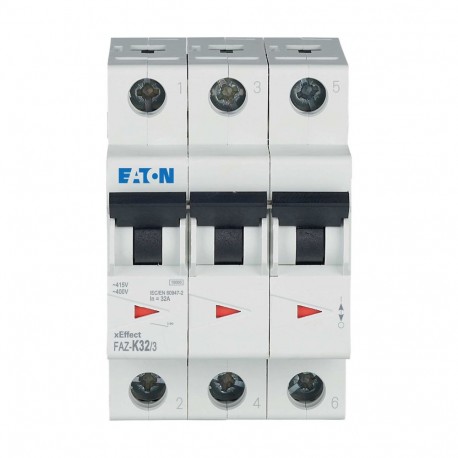

FAZ-K32/3 278914 Y7-278914 EATON ELECTRIC Over current switch, 32A, 3p, K-Char, AC
FAZ-K32/3
278914
Y7-278914
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for specialized overcurrent protection, the Eaton Moeller FAZ-K32/3 circuit breaker features a K-characteristic designed to handle high inrush currents without nuisance tripping. These breakers are commonly deployed to protect motor loads, transformers, and semiconductor applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): K
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 32 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 9.3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲RoHS conform
CSA (Class No. 3215-30)
IEC/EN 60898
UL (Category Control Number QVNU2, QVNU8)
North America (UL recognized, CSA certified)
CE marking
IEC/EN 60947-2
UL 1077
UL (File No. E177451)
CSA-C22.2 No. 235
IEC 61373
EN45545-2
Switchgear for industrial and advanced commercial applications
xEffect - Switchgear for industrial and advanced commercial applications
Miniature circuit breaker
IP20
IP20 (IEC)
IP40 (when fitted)
Miniature circuit breaker
