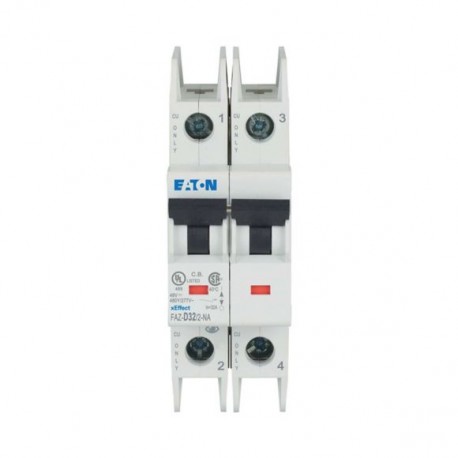

FAZ-D32/2-NA 102194 Y7-102194 EATON ELECTRIC Over current switch, 32A, 2p, D-Char, AC
FAZ-D32/2-NA
102194
Y7-102194
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Conforming to stringent North American electrical standards, the Eaton Moeller FAZ-D32/2-NA over current switch delivers dependable two-pole protection for industrial panels. Switchgear featuring this classification is widely installed to safeguard export equipment against destructive overloads and line faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: FAZ-D32/2-NA
- Catalogue code: 102194
- Product Length/Depth: 105 mm
- Product Height: 75.5 mm
- Product Width: 35.4 mm
More info
▲General specifications
UL (Category Control Number DIVQ)
UL 489
CSA (File No. 204453)
CE marking
North America (UL listed, CSA certified)
UL (File No. E235139)
UL 489, CSA C22.2 No. 5
CSA-C22.2 No. 5-09
IEC/EN 60947-2
Specially designed for North America, suitable as BCPD
CSA (Class No. 1432-01)
EN45545-2
IEC 61373
Delivery program
- FAZ-NA
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
UL/CSA Type: -
IP20 (IEC)
UL: 4 Nm (36 lb-in) for AWG 6
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
Max. 2.4 Nm
Design verification as per IEC/EN - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
