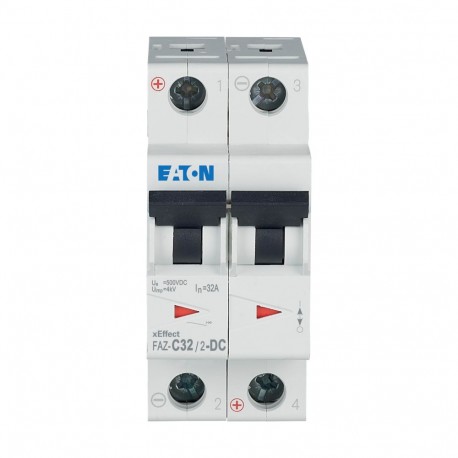

FAZ-C32/2-DC 279143 Y7-279143 EATON ELECTRIC Over current switch, 32A, 2p, C-Char, DC current
FAZ-C32/2-DC
279143
Y7-279143
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller FAZ-C32/2-DC over current switch is specifically constructed to protect direct current electrical distribution systems from overloads and short circuits. Direct current protective devices are vital in renewable energy installations, battery banks, and industrial DC control circuits to ensure safe fault interruption.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 32 A
- Rated voltage (EF000228): 250 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 6.8 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
