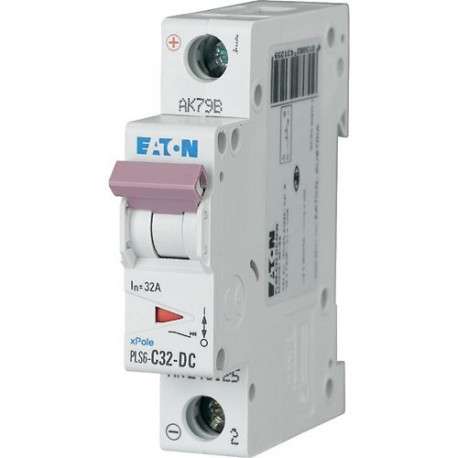

PLS6-C32-DC-MW 243125 Y7-243125 EATON ELECTRIC Over current switch, 32A, 1p, type C characteristic, DC
PLS6-C32-DC-MW
243125
Y7-243125
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed specifically for direct current networks, the PLS6-C32-DC-MW 243125 Y7-243125 EATON ELECTRIC Over current switch, 32A, 1p, type C characteristic, DC functions as an overcurrent switch to protect DC-powered electrical systems from excessive current flows and short circuits. DC circuit breakers are critical components in renewable energy, battery storage, and industrial control installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 32 A
- Rated voltage (EF000228): 220 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 0 Hz
- Power loss (EF005387): 3.4 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
