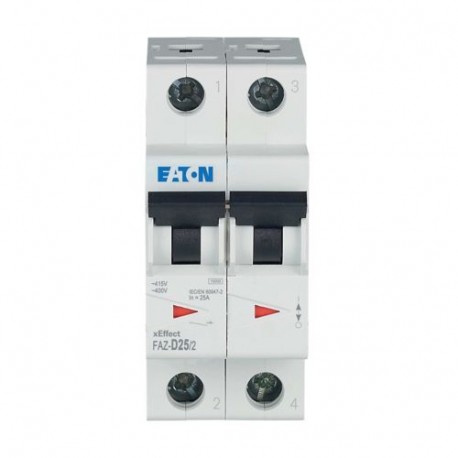

FAZ-D25/2 278785 Y7-278785 EATON ELECTRIC Over current switch, 25A, 2p, D-Char, AC
FAZ-D25/2
278785
Y7-278785
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
FAZ-D25/2 278785 Y7-278785 EATON ELECTRIC Over current switch, 25A, 2p, D-Char, AC acts as an over current switch designed to safeguard electrical circuits against sustained overloads and damaging short-circuit currents. Industrial applications rely on these components to safely isolate faulty sub-circuits and protect capital equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): D
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 25 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 5.2 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): false
- Concurrently switching neutral conductor (EF005997): false
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
North America (UL recognized, CSA certified)
CE marking
CSA-C22.2 No. 235
UL (Category Control Number QVNU2, QVNU8)
IEC/EN 60898
CSA (Class No. 3215-30)
CSA (File No. 204453)
IEC/EN 60947-2
UL (File No. E177451)
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
IP20 (IEC)
IP20
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
