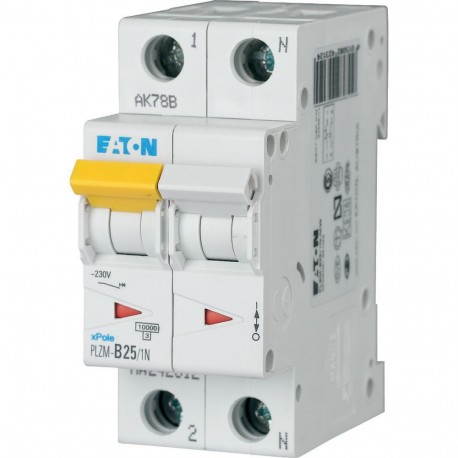

PLZM-B25/1N-MW 242312 Y7-242312 EATON ELECTRIC Over current switch, 25A, 1pole+N, type B characteristic
PLZM-B25/1N-MW
242312
Y7-242312
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number PLZM-B25/1N-MW is an over current switch engineered to protect electrical circuits against overloads and short circuits in distribution boards. Protective devices of this type automatically interrupt the flow of electrical current when fault conditions arise, safeguarding wiring and connected equipment from thermal damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 25 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
More info
▲General specifications
Product specifications
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Concurrently switching N-neutral
PLZM
