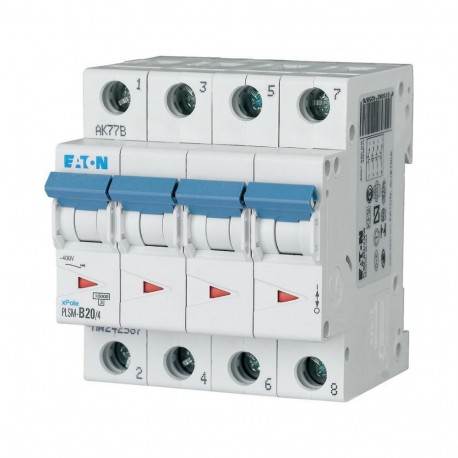

PLSM-B20/4-MW 242587 Y7-242587 EATON ELECTRIC Over current switch, 20A, 4p, type B characteristic
PLSM-B20/4-MW
242587
Y7-242587
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller PLSM-B20/4-MW over current switch protects multi-phase electrical distribution circuits by interrupting current flow during overload or short-circuit conditions. Devices of this type are essential for maintaining safety and preventing equipment damage in commercial and industrial electrical layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 4
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 10.5 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
Product specifications
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Concurrently switching N-neutral
PLSM
