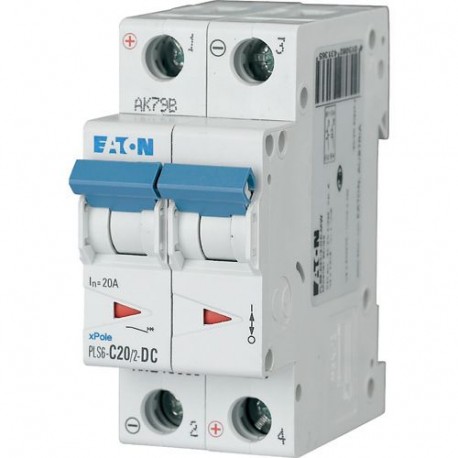

PLS6-C20/2-DC-MW 243136 Y7-243136 EATON ELECTRIC Over current switch, 20A, 2p, type C characteristic, DC
PLS6-C20/2-DC-MW
243136
Y7-243136
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Direct current circuit protection is effectively managed by the PLS6-C20/2-DC-MW 243136 Y7-243136 EATON ELECTRIC Over current switch, 20A, 2p, type C characteristic, DC. These units are specifically designed to safely interrupt DC circuits during overloads and short circuits in specialized industrial setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 220 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 0 Hz
- Power loss (EF005387): 5.8 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
