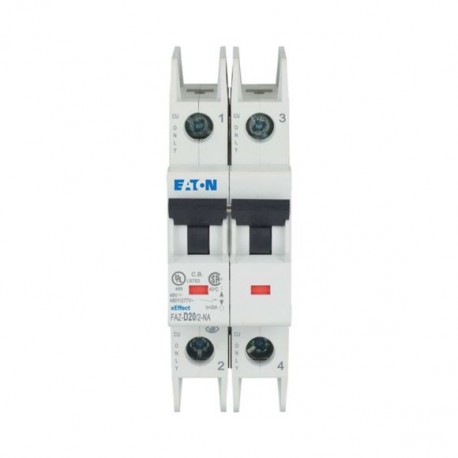

FAZ-D20/2-NA 102191 Y7-102191 EATON ELECTRIC Over current switch, 20A, 2p, D-Char, AC
FAZ-D20/2-NA
102191
Y7-102191
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Managed by Eaton Moeller under part number FAZ-D20/2-NA, this over current switch provides reliable circuit protection against overloads and short circuits in commercial distribution boards. Engineers frequently rely on multi-pole thermal-magnetic protection components to safeguard branch circuits and connected machinery from electrical faults. Quotations for pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: FAZ-D20/2-NA
- Catalogue code: 102191
- Catalogue title: FAZ-D20/2-NA 102191 Y7-102191 EATON ELECTRIC Over current switch, 20A, 2p, D-Char, AC
More info
▲General specifications
CSA (Class No. 1432-01)
IEC 60947-2
Specially designed for North America, suitable as BCPD
UL 489
CE marking
IEC/EN 60947-2
CSA (File No. 204453)
UL 489, CSA C22.2 No. 5
UL (Category Control Number DIVQ)
CSA-C22.2 No. 5-09
UL (File No. E235139)
EN45545-2
IEC 61373
Delivery program
- FAZ-NA
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
UL/CSA Type: -
IP20 (IEC)
IP40 (when fitted)
UL: 4 Nm (36 lb-in) for AWG 6
Max. 2.4 Nm
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
Design verification as per IEC/EN - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ-NA
