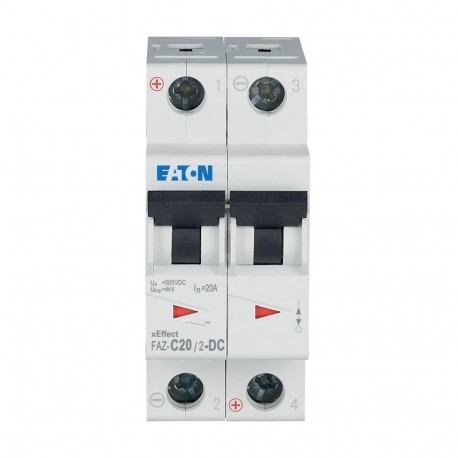

FAZ-C20/2-DC 279141 Y7-279141 EATON ELECTRIC Over current switch, 20A, 2p, C-Char, DC current
FAZ-C20/2-DC
279141
Y7-279141
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Optimized for direct current applications, the FAZ-C20/2-DC 279141 Y7-279141 EATON ELECTRIC Over current switch, 20A, 2p, C-Char, DC current functions as a specialized circuit breaker designed to safeguard DC electrical systems against overloads and short circuits. It provides reliable automated interruption in solar, battery, and industrial DC control circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 250 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 5.8 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
EN45545-2
IEC 61373
Delivery program
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ-DC
FAZ-DC
