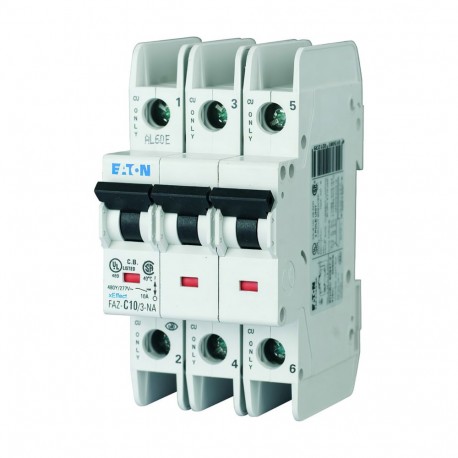

FAZ-D16/3-NA 102270 Y7-102270 EATON ELECTRIC Over current switch, 16A, 3p, D-Char, AC
FAZ-D16/3-NA
102270
Y7-102270
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for three-phase distribution circuits, the FAZ-D16/3-NA 102270 Y7-102270 EATON ELECTRIC Over current switch, 16A, 3p, D-Char, AC provides dependable overload and short-circuit protection. Such switches are fundamental in industrial automation setups to secure machinery supply lines against unexpected electrical faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): D
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 16 A
- Rated voltage (EF000228): 415 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 6.9 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
CSA (File No. 204453)
UL (Category Control Number DIVQ)
UL 489
CSA-C22.2 No. 5-09
UL 489, CSA C22.2 No. 5
IEC 60947-2
North America (UL listed, CSA certified)
Specially designed for North America, suitable as BCPD
CE marking
CSA (Class No. 1432-01)
UL (File No. E235139)
EN45545-2
IEC 61373
Delivery program
- FAZ-NA
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20
IP40 (when fitted)
IP20 (IEC)
Max. 2.4 Nm
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
Design verification as per IEC/EN - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ-NA
