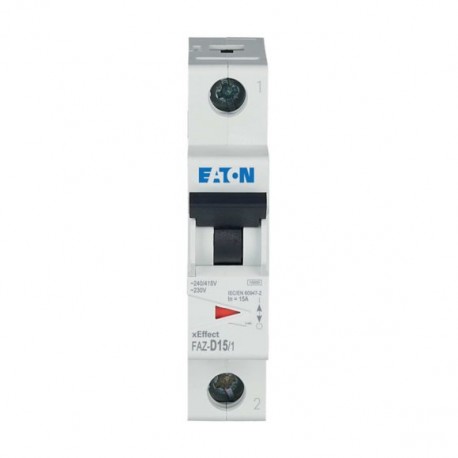

FAZ-D15/1 278583 Y7-278583 EATON ELECTRIC Miniature circuit breaker (MCB), 15A, 1p, type D characteristic
FAZ-D15/1
278583
Y7-278583
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number FAZ-D15/1 is a FAZ-D15/1 278583 Y7-278583 EATON ELECTRIC Miniature circuit breaker (MCB), 15A, 1p, type D characteristic providing reliable circuit protection by tripping automatically during overloads and short circuits. It is commonly utilized in electrical switchboards to safeguard connected wiring and loads. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth: 70.5 mm
- Release characteristic: D
- Number of poles (total): 1
- Number of protected poles: 1
- Rated current: 15 A
- Rated voltage: 230 V
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage type: AC
- Frequency: 50 Hz
- Power loss: 2 W
- Current limiting class: 3
- Flush-mounted installation: No
- Concurrently switching neutral conductor: No
- Over voltage category: 3
- Pollution degree: 2
More info
▲General specifications
RoHS conform
UL (File No. E177451)
UL (Category Control Number QVNU2, QVNU8)
IEC/EN 60898
UL 1077
IEC/EN 60947-2
CSA (File No. 204453)
North America (UL recognized, CSA certified)
CE marking
CSA-C22.2 No. 235
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
IP20
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
