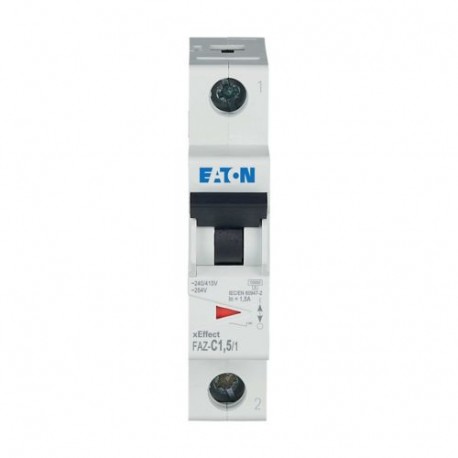

FAZ-C1,5/1 278547 Y7-278547 EATON ELECTRIC Miniature circuit breaker (MCB), 1.5A, 1p, type C characteristic
FAZ-C1,5/1
278547
Y7-278547
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Acting as an automatic switch, the Eaton Moeller FAZ-C1,5/1 278547 Y7-278547 EATON ELECTRIC Miniature circuit breaker (MCB), 1.5A, 1p, type C characteristic interrupts electrical current during fault conditions to protect connected equipment. These single-pole breakers are common in industrial and commercial control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 1.5 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 1.3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
CSA-C22.2 No. 235
IEC/EN 60947-2
North America (UL recognized, CSA certified)
IEC/EN 60898
UL (File No. E177451)
CSA (Class No. 3215-30)
UL (Category Control Number QVNU2, QVNU8)
CE marking
CSA (File No. 204453)
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
UL/CSA Type: -
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
