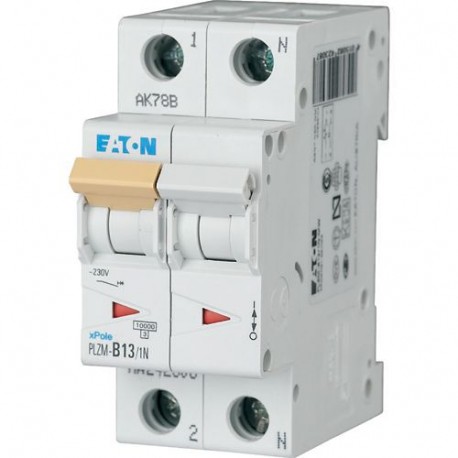

PLZM-B13/1N-MW 242308 Y7-242308 EATON ELECTRIC Over current switch, 13A, 1pole+N, type B characteristic
PLZM-B13/1N-MW
242308
Y7-242308
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
PLZM-B13/1N-MW 242308 Y7-242308 EATON ELECTRIC Over current switch, 13A, 1pole+N, type B characteristic serves as an over current switch deployed in electrical panels to isolate circuits during overloads or short circuits, protecting connected wiring and loads. These devices provide essential safety disconnection across residential and commercial automation networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 13 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
More info
▲General specifications
Product specifications
PLZM
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Additional equipment possible
