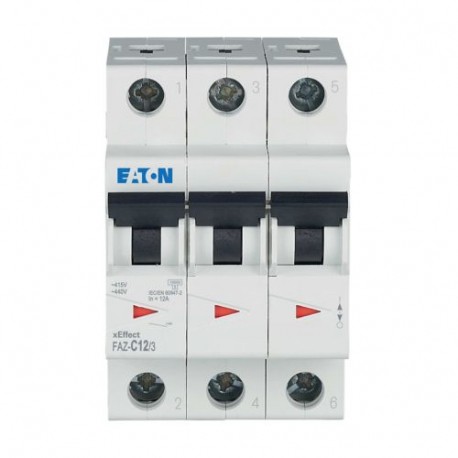

FAZ-C12/3 278870 Y7-278870 EATON ELECTRIC Miniature circuit breaker (MCB), 12A, 3p, type C characteristic
FAZ-C12/3
278870
Y7-278870
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 3-pole miniature circuit breaker like the FAZ-C12/3 278870 Y7-278870 EATON ELECTRIC Miniature circuit breaker (MCB), 12A, 3p, type C characteristic is commonly deployed in commercial and industrial electrical panels to protect wiring and connected loads from overloads and short circuits. It automatically trips to disconnect faulty circuits, minimizing downtime and hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 12 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 6.5 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
UL (Category Control Number QVNU2, QVNU8)
UL (File No. E177451)
CE marking
IEC/EN 60898
UL 1077
IEC/EN 60947-2
CSA-C22.2 No. 235
North America (UL recognized, CSA certified)
CSA (File No. 204453)
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
UL/CSA Type: -
IP20 (IEC)
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
