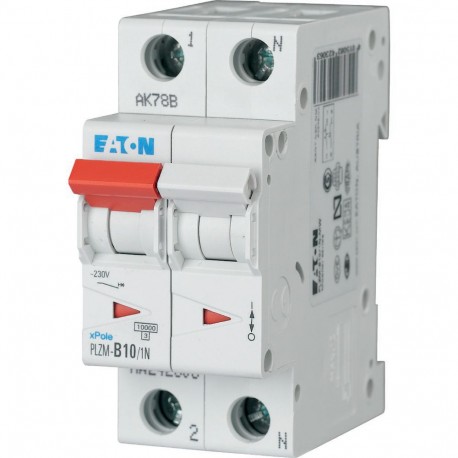

PLZM-B10/1N-MW 242306 Y7-242306 EATON ELECTRIC Over current switch, 10A, 1pole+N, type B characteristic
PLZM-B10/1N-MW
242306
Y7-242306
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Over current switch, 10A, 1pole+N, type B characteristic designated as PLZM-B10/1N-MW 242306 Y7-242306 by Eaton Moeller is a dependable protective device for residential and light commercial wiring. It automatically disconnects power when an overload or short circuit is detected to protect downstream electrical infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 10 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
More info
▲General specifications
Product specifications
- Switchgear for residential and commercial applications
- xPole - Switchgear for residential and commercial applications
Concurrently switching N-neutral
Miniature circuit breaker
