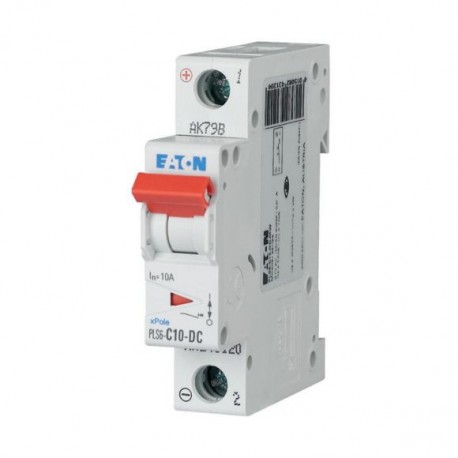

PLS6-C10-DC-MW 243120 Y7-243120 EATON ELECTRIC Over current switch, 10A, 1p, type C characteristic, DC
PLS6-C10-DC-MW
243120
Y7-243120
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller PLS6-C10-DC-MW is an over current switch built to interrupt direct current circuits safely when overloads or short circuits occur. These specialized protective switches are commonly integrated into photovoltaic installations, DC control panels, and telecommunications power supplies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 10 A
- Rated voltage (EF000228): 220 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 0 Hz
- Power loss (EF005387): 1.8 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
