View larger

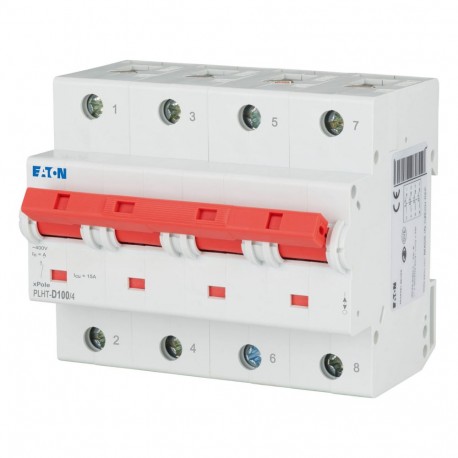

PLHT-D100/4 248101 0001609562 EATON ELECTRIC Over current switch, 100A, 4p, D-Char, AC
PLHT-D100/4
248101
0001609562
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing heavy-duty circuit protection, the PLHT-D100/4 248101 0001609562 EATON ELECTRIC Over current switch, 100A, 4p, D-Char, AC is designed to safeguard industrial electrical installations against high-current faults and overloads. High-capacity overcurrent switches are essential for main distribution boards and large motor feeder circuits where reliable fault interruption is critical. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 75 mm
- Release characteristic (EF000889): D
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 4
- Rated current (EF000227): 100 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
