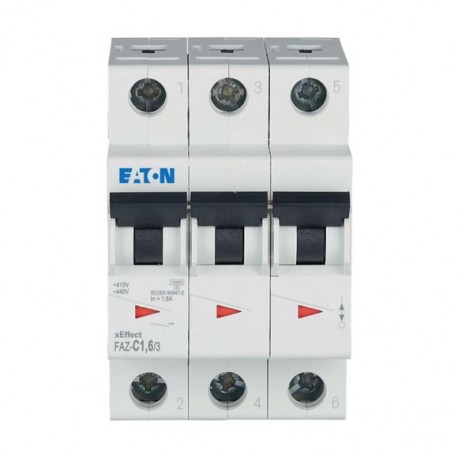

FAZ-C1,6/3 278860 Y7-278860 EATON ELECTRIC Miniature circuit breaker (MCB), 1, 6A, 3p, C-Char, AC
FAZ-C1,6/3
278860
Y7-278860
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller FAZ-C1,6/3 miniature circuit breaker (MCB) provides dedicated overcurrent protection for multi-phase electrical circuits. Technicians integrate these switching units into control panels to protect equipment from overloads and short-circuit faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 1.6 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 4.5 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
UL (Category Control Number QVNU2, QVNU8)
North America (UL recognized, CSA certified)
CE marking
IEC/EN 60947-2
CSA (Class No. 3215-30)
UL (File No. E177451)
CSA (File No. 204453)
CSA-C22.2 No. 235
IEC/EN 60898
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
IP40 (when fitted)
UL/CSA Type: -
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
