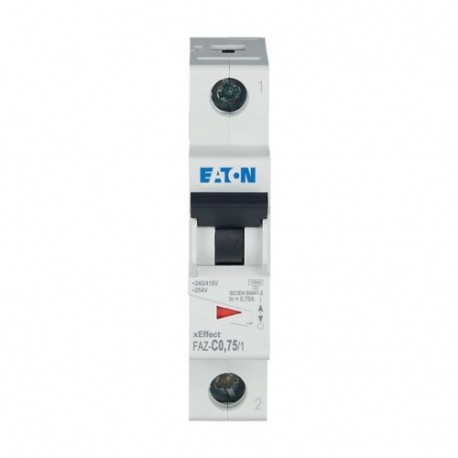

FAZ-C0,75/1 278545 Y7-278545 EATON ELECTRIC Miniature circuit breaker (MCB), 0.75A, 1p, type C characteristic
FAZ-C0,75/1
278545
Y7-278545
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
FAZ-C0,75/1 278545 Y7-278545 EATON ELECTRIC Miniature circuit breaker (MCB), 0.75A, 1p, type C characteristic is a miniature circuit breaker designed to automatically disconnect electrical circuits during overload and short-circuit conditions. Devices of this type protect commercial and industrial distribution boards, wiring networks, and connected terminal equipment from overcurrent damage.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 0.75 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 2.8 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
UL 1077
CSA (Class No. 3215-30)
North America (UL recognized, CSA certified)
CSA-C22.2 No. 235
IEC/EN 60898
CSA (File No. 204453)
IEC/EN 60947-2
UL (Category Control Number QVNU2, QVNU8)
CE marking
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
UL/CSA Type: -
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
