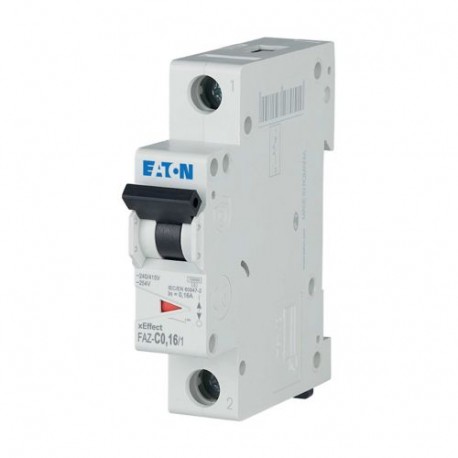

FAZ-C0,16/1 278542 Y7-278542 EATON ELECTRIC Miniature circuit breaker (MCB), 0.16A, 1p, type C characteristic
FAZ-C0,16/1
278542
Y7-278542
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A miniature circuit breaker (MCB) from Eaton Moeller provides reliable overcurrent and short-circuit protection for various electrical distribution systems and control cabinets. These devices interrupt electrical circuits automatically during fault conditions to safeguard sensitive equipment and wiring infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 0.16 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 1.5 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
North America (UL recognized, CSA certified)
CSA (File No. 204453)
UL (File No. E177451)
CSA-C22.2 No. 235
UL 1077
IEC/EN 60947-2
CSA (Class No. 3215-30)
CE marking
IEC/EN 60898
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20
UL/CSA Type: -
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
