View larger
Images are for illustrative purposes only. Please refer to data sheet for details

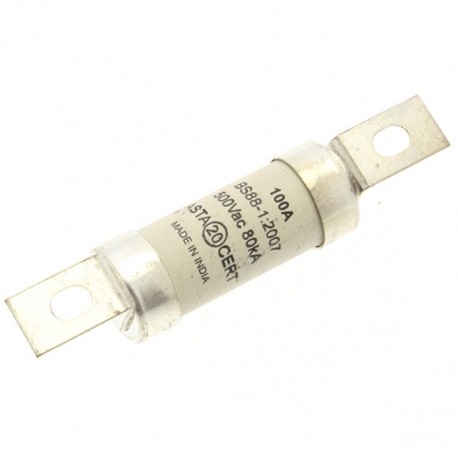

OSD 100A 500V AC BS88 gG FUSE OSD100 EATON ELECTRIC Utility fuse-link, low voltage, 100 A, AC 415 V, BS88/J,..
OSD 100A 500V AC BS88 gG FUSE
OSD100
OSD100
EATON - MOELLER
20 Pcs.
Utility fuse-link, low voltage, 100 A, AC 415 V, BS88/J, 39 x 46 mm, gL/gG, BS
OSD 100A 500V AC BS88 gG FUSE
OSD 100A 500V AC BS88 gG FUSE - Fuse-link, low voltage, 100 A, AC 500 V, 80 kA, BS88, 21 x 95 mm, gL/gG, BS
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse-link, low voltage, 100 A, AC 500 V, 80 kA, BS88, 21 x 95 mm, gL/gG, BS
Fuse, Fuse-link, low voltage, 100 A, AC 500 V, BS88, 21 x 95 mm, gL/gG, BS, offset bolted tags, general industrial applications, BS88, IEC 60269, Breaking Capacity 80 kA, Optional accessories fuse-holder CM100F
Delivery program
Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
100 A
Rated voltage
AC 500 V
Construction size
BS88
Size
21 x 95 mm
Utilization category
gL/gG
Breaking Capacity
80 kA
usable for size/applications
general industrial applications
Standard/Approval
BS
Shape
offset bolted tags
Standards/Regulations
BS88
IEC 60269
IEC 60269
Optional accessories
fuse-holder CM100F
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
100 A
Rated voltage
500 V
Voltage type
AC
Rated switching capacity
80 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
