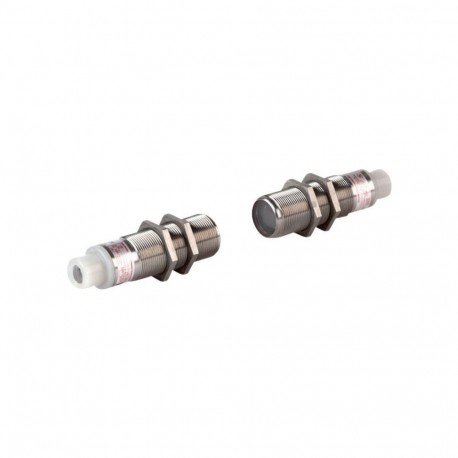

E58-30TS250-HAP 135697 Y7-135697 EATON ELECTRIC Thru-beam photoelectric sensor, transmitter, Sn 250m, 4L, 10..
E58-30TS250-HAP
135697
Y7-135697
EATON - MOELLER
1 Pcs.
Automation > Through beam photoelectric sensor
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
E58-30TS250-HAP 135697 Y7-135697 EATON ELECTRIC Thru-beam photoelectric sensor, transmitter, Sn 250m, 4L, 10.. serves as a specialized transmitter component in industrial through-beam detection setups. Photoelectric transmitters project a focused optical beam across an installation space to a corresponding receiver unit, enabling precise presence or position sensing on automated assembly lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Scope of delivery of the one-way system (EF004032): Transmitter
- Max. opening angle (EF002642): 0 °
- Pre failure notice (EF004129): No
- With time function (EF003582): No
- Rated switching distance (EF008289): 250000 mm
- Max. switching distance (EF007367): 0 mm
- Max. output current (EF001315): 100 mA
- With reflector (EF007448): No
- Analogue output 0 V ... 10 V (EF006807): No
- Analogue output 0 mA ... 20 mA (EF006808): No
- Analogue output 4 mA ... 20 mA (EF006810): No
- Analogue output -10 V ... +10 V (EF006809): No
- With other analogue output (EF007485): No
- With communication interface analogue (EF007305): No
- With communication interface AS-Interface (EF007306): No
- With communication interface CANOpen (EF007307): No
More info
▲General specifications
UL Category Control No.: NRKH, NRKH7
Certified by UL for use in Canada
CSA File No.: UL report applies to both US and Canada
IEC/EN 60947-5-2
UL File No.: E166051
CE
UL
UL 508
Product specifications
Protection against polarity reversal
Thru-light beam
Protection against wire breakage
4-wire
IP68
