View larger

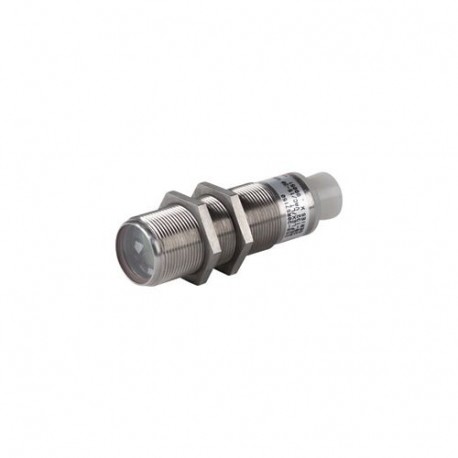

E58-30DPS280-HLP 135683 Y7-135683 EATON ELECTRIC Diffuse reflective sensor, Sn 280mm, 4L, 10-30VDC, light, N..
E58-30DPS280-HLP
135683
Y7-135683
EATON - MOELLER
1 Pcs.
Automation > Light scanner with background masking
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller E58-30DPS280-HLP diffuse reflective sensor provides non-contact object detection for packaging, material handling, and factory automation applications. Photoelectric sensors of this category help streamline production lines by reliably signalling the arrival or passage of items in dynamic processing environments.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Adjustment range (EF002300): 0 mm
- Operating distance (EF004121): 0 mm
- Triangulation (EF008296): Background fade-out
- Pre failure notice (EF004129): No
- With time function (EF003582): No
- Rated switching distance (EF008289): 280 mm
- Max. switching distance (EF007367): 318 mm
- Max. output current (EF001315): 100 mA
- With reflector (EF007448): No
- Analogue output 0 V ... 10 V (EF006807): No
- Analogue output 0 mA ... 20 mA (EF006808): No
- Analogue output 4 mA ... 20 mA (EF006810): No
- Analogue output -10 V ... +10 V (EF006809): No
- With other analogue output (EF007485): No
- With communication interface analogue (EF007305): No
- With communication interface AS-Interface (EF007306): No
More info
▲General specifications
CSA File No.: UL report applies to both US and Canada
UL File No.: E166051
CE
IEC/EN 60947-5-2
UL
UL 508
Certified by UL for use in Canada
UL Category Control No.: NRKH, NRKH7
Product specifications
Protection against polarity reversal
Reflected-light beam
Protection against wire breakage
4-wire
IP68
