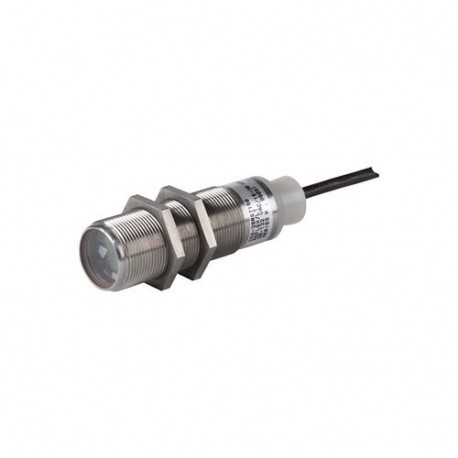

EATON - MOELLER E58-30DPS280-HD E58-30DPS280-HD 135680 Y7-135680 EATON ELECTRIC Diffuse reflective sensor, Sn 280mm, 4L, 10-30VDC, dark, NPN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E58-30DPS280-HD 135680 Y7-135680 EATON ELECTRIC Diffuse reflective sensor, Sn 280mm, 4L, 10-30VDC, dark, NPN..

E58-30DPS280-HD

135680

Y7-135680

EATON - MOELLER

1 Pcs.

Diffuse reflective sensor, Sn=280mm, 4L, 10-30VDC, dark, NPN, PNP, M30, metal, line 2m E58-30DPS280-HD Eaton Moeller® series E58 Diffuse reflective sensor, Sn=280mm, 4L, 10-30VDC, dark, NPN, PNP, M30, metal, line 2m E58 series, product features: sensors with a diameter of 18 mm or 30 mm.Highly refined optics for long sensing ranges and to see through high levels of contamination – unmatched optical performance. Perfect Prox® technology provides exceptional background rejection and extremely high excess gain. Resistant to many chemicals used in the automotive, food processing and forest products industries. Suitable for high temperature , high pressure washdown (82 bar). mechanical Viton gaskets are resistant to extreme temperature variations. Visible sensing beam on all models lets you see where the beam is aimed for quick flush mounting and alignment. The function display is the brightest available and is visible from any angle and in any lighting condition

Automation > Light scanner with background masking
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller E58-30DPS280-HD is a diffuse reflective sensor engineered to monitor object presence within industrial automation processes. Diffuse reflective optical sensors detect items by measuring the light reflected directly off the target surface without needing a separate reflector. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustment range (EF002300): 0 mm
  • Operating distance (EF004121): 0 mm
  • Triangulation (EF008296): Background fade-out
  • Pre failure notice (EF004129): No
  • With time function (EF003582): No
  • Rated switching distance (EF008289): 280 mm
  • Max. switching distance (EF007367): 318 mm
  • Max. output current (EF001315): 100 mA
  • With reflector (EF007448): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With other analogue output (EF007485): No
  • With communication interface analogue (EF007305): No
  • With communication interface AS-Interface (EF007306): No

More info

▲

General specifications

Product Name
Eaton Moeller® series E58 Diffuse reflective sensor
Catalog Number
135680
Model Code
E58-30DPS280-HD
EAN
4015081324736
Product Length/Depth
38.1 mm
Product Height
38.1 mm
Product Width
38.1 mm
Product Weight
0.23 kg
Certifications
UL File No.: E166051
Certified by UL for use in Canada
CE
CSA-C22.2 No. 14
UL Category Control No.: NRKH, NRKH7
UL 508
UL
CSA File No.: UL report applies to both US and Canada
IEC/EN 60947-5-2

Product specifications

Type
Optical sensors
Electric connection type
Cable
Fitted with:
Background suppression (Perfect Prox)
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Operating mode
Switching principle: Dark switching
Explosion safety category for dust
None
Explosion safety category for gas
None
Functions
Protection against polarity reversal
Short-circuit protection
Reflected-light beam
Protection against wire breakage
Voltage type
DC
Wire size
22
Connection type
2 m connection cable
4-wire
Cable sheath material
Polyvinyl chloride (PVC)
Light type
Other
Degree of protection
NEMA 6
IP68
Interface type
Other
LED indicator
Status indication of Switching state: Red LED
Switch function type
Other
Load current
Max. 100 mA (Ie)
Laser protection class
None
Operation agent-safety class
Safety class 2
Shock resistance
100 g, Mechanical, Shock duration 3 ms
Optical surface material
Glass
Output current (mA) - max
100 mA
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
10 V
Rated switching distance (Sn)
280 mm
Reflector distance - min
0 mm
Sensor height
0 mm
Sensor length
111 mm
Switching distance - max
318 mm
Switching voltage of OSSD at state high
30 V
Transmission range of the safety field
0 m
Voltage rating - max
30 V
Safety type (IEC 61496-1)
1
Switching frequency
312 Hz
Sensing mode
Dark switching
Switching output type
NPN
Sensor material
Stainless steel
Triangulation
Background fade-out
Wavelength of the sensor
660 nm
Width sensor
0 mm
Product category
E58 Harsh Duty Series
Response time
1.6 ms
Adjustment range - max
280 mm
Adjustment range - min
0 mm
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-40 °C
Diameter sensor
30 mm
Light dot size
0 mm²
Number of contact energized outputs with signalling function
0
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
2
Operating distance - max
0 mm
Operating distance - min
0 mm
Adjustment type
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
