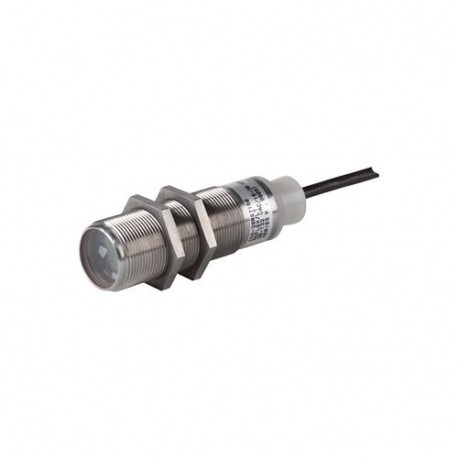

E58-30DP150-HL 135678 Y7-135678 EATON ELECTRIC Diffuse reflective sensor, Sn 150mm, 4L, 10-30VDC, light, NPN..
E58-30DP150-HL
135678
Y7-135678
EATON - MOELLER
1 Pcs.
Automation > Light scanner with background masking
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A diffuse reflective sensor, Sn 150mm, 4L, 10-30VDC, light, NPN.. device from Eaton Electric, cataloged as the Eaton Moeller E58-30DP150-HL, is an optical sensing component utilized to detect targets by measuring the reflection of its own emitted light beam off the object's surface. These versatile sensors are deployed throughout industrial plants for general presence checking, automated packaging verification, and material handling tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustment range (EF002300): 0 mm
- Operating distance (EF004121): 0 mm
- Triangulation (EF008296): Background fade-out
- Pre failure notice (EF004129): No
- With time function (EF003582): No
- Rated switching distance (EF008289): 150 mm
- Max. switching distance (EF007367): 165 mm
- Max. output current (EF001315): 100 mA
- With reflector (EF007448): No
- Analogue output 0 V ... 10 V (EF006807): No
- Analogue output 0 mA ... 20 mA (EF006808): No
- Analogue output 4 mA ... 20 mA (EF006810): No
- Analogue output -10 V ... +10 V (EF006809): No
- With other analogue output (EF007485): No
- With communication interface analogue (EF007305): No
- With communication interface AS-Interface (EF007306): No
More info
▲General specifications
IEC/EN 60947-5-2
CSA File No.: UL report applies to both US and Canada
UL
CSA-C22.2 No. 14
UL Category Control No.: NRKH, NRKH7
Certified by UL for use in Canada
UL 508
UL File No.: E166051
Product specifications
Protection against polarity reversal
Reflected-light beam
Protection against wire breakage
2 m connection cable
IP68
