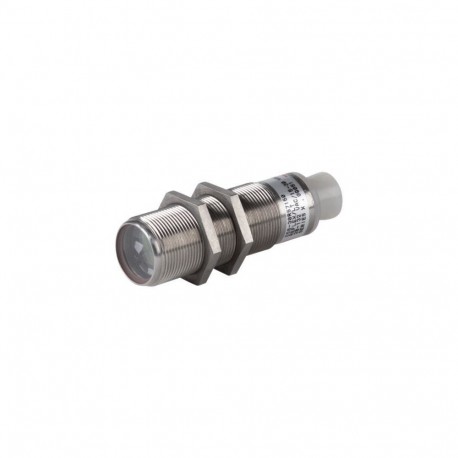

E58-30DP150-HDP 135677 Y7-135677 EATON ELECTRIC Diffuse reflective sensor, Sn 150mm, 4L, 10-30VDC, dark, NPN..
E58-30DP150-HDP
135677
Y7-135677
EATON - MOELLER
1 Pcs.
Automation > Light scanner with background masking
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Utilized for object detection across diverse industrial environments, the Eaton Moeller E58-30DP150-HDP diffuse reflective sensor identifies targets without requiring a separate reflector. These sensors are commonly applied in material handling and processing equipment to detect the presence or position of moving items.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustment range (EF002300): 0 mm
- Operating distance (EF004121): 0 mm
- Triangulation (EF008296): Background fade-out
- Pre failure notice (EF004129): No
- With time function (EF003582): No
- Rated switching distance (EF008289): 150 mm
- Max. switching distance (EF007367): 165 mm
- Max. output current (EF001315): 100 mA
- With reflector (EF007448): No
- Analogue output 0 V ... 10 V (EF006807): No
- Analogue output 0 mA ... 20 mA (EF006808): No
- Analogue output 4 mA ... 20 mA (EF006810): No
- Analogue output -10 V ... +10 V (EF006809): No
- With other analogue output (EF007485): No
- With communication interface analogue (EF007305): No
- With communication interface AS-Interface (EF007306): No
More info
▲General specifications
CE
UL File No.: E166051
IEC/EN 60947-5-2
UL
UL 508
UL Category Control No.: NRKH, NRKH7
Certified by UL for use in Canada
CSA-C22.2 No. 14
Product specifications
Reflected-light beam
Protection against polarity reversal
Protection against wire breakage
Plug-in connection M12 x 1
IP68
