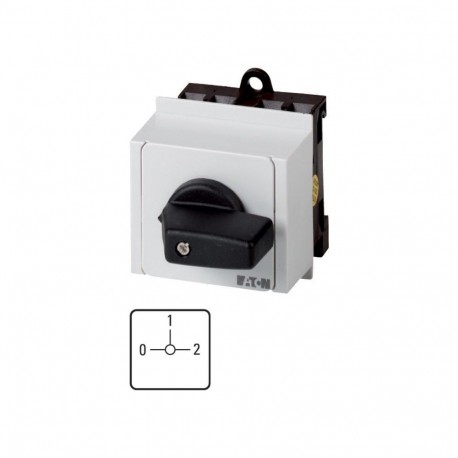

EATON - MOELLER T0-1-15502/IVS T0-1-15502/IVS 009335 Y7-9335 EATON ELECTRIC Operation mode switch, Contacts: 2, 20 A, front plate: 0-1-2, 9.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15502/IVS 009335 Y7-9335 EATON ELECTRIC Operation mode switch, Contacts: 2, 20 A, front plate: 0-1-2, 9..

T0-1-15502/IVS

009335

Y7-9335

EATON - MOELLER

1 Pcs.

Operation mode switch, Contacts: 2, 20 A, front plate: 0-1-2, 90 °, maintained, service distribution board mounting Operation mode switch; 2-pole; 20a; rating Plate: 0-1-2; 90 °; Latch; Mounting in control cabinet Eaton Moeller® series T0 Operation mode switch, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 0-1-2, Design number 15502 Operation mode switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operation mode switches give machine operators clear control over different system states, such as manual, automatic, or setup routines. This Eaton Moeller T0-1-15502/IVS device is engineered for installation in distribution boards or control enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Operation mode switch
Catalog Number
009335
Model Code
T0-1-15502/IVS
EAN
4015080093350
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
IEC/EN 60947
UL 60947-4-1
UL File No.: E36332
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60204
CSA
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA Class No.: 3211-05
UL
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
