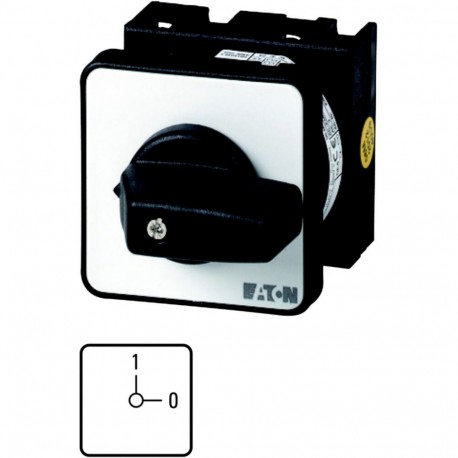

EATON - MOELLER T0-2-8224/E T0-2-8224/E 011745 Y7-11745 EATON ELECTRIC ON-OFF switches, Contacts: 3, 20 A, front plate: 1-0, 90 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8224/E 011745 Y7-11745 EATON ELECTRIC ON-OFF switches, Contacts: 3, 20 A, front plate: 1-0, 90 °, maint..

T0-2-8224/E

011745

Y7-11745

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 3, 20 A, front plate: 1-0, 90 °, maintained, flush mounting Disconnect switch ON-OFF; 3-pole; 20a; rating Plate: 1-0; 90 °; Latch; flush Mount Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 3, 90 °, maintained, 1-0, Design number 8224 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for straightforward circuit interruption, this Eaton Moeller T0-2-8224/E ON-OFF switch is utilized across industrial machinery for manual power isolation. Panel builders integrate these devices to ensure safe operator intervention during maintenance cycles.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
011745
Model Code
T0-2-8224/E
EAN
4015080117452
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA Class No.: 3211-05
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CE
CSA
UL
UL Category Control No.: NLRV
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 94
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
