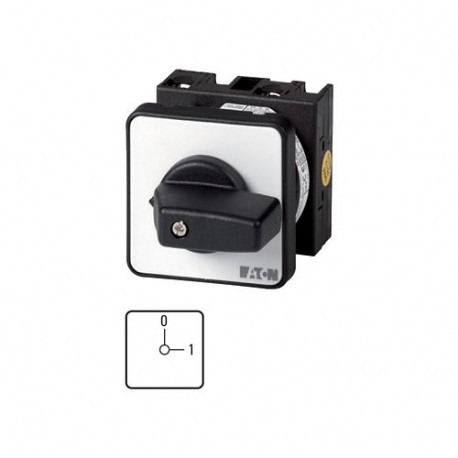

EATON - MOELLER T0-2-15483/E T0-2-15483/E 011429 Y7-11429 EATON ELECTRIC ON-OFF switches, Contacts: 3, 20 A, front plate: 0-1, 90 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15483/E 011429 Y7-11429 EATON ELECTRIC ON-OFF switches, Contacts: 3, 20 A, front plate: 0-1, 90 °, main..

T0-2-15483/E

011429

Y7-11429

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 3, 20 A, front plate: 0-1, 90 °, maintained, flush mounting Disconnect switch ON-OFF; 3-pole; 20a; rating Plate: 0-1; 90 °; Latch; flush Mount Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 3, 90 °, maintained, 0-1, Design number 15483 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Standard ON-OFF switches manufactured by Eaton Moeller, including model T0-2-15483/E, function as essential disconnect devices to safely isolate power supplies and control circuits in industrial machine builds. They deliver reliable mechanical switching performance for daily operational safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
011429
Model Code
T0-2-15483/E
EAN
4015080114291
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
IEC/EN 60204
UL Category Control No.: NLRV
UL File No.: E36332
CSA
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CE
CSA Class No.: 3211-05
IEC/EN 60947
VDE 0660
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
