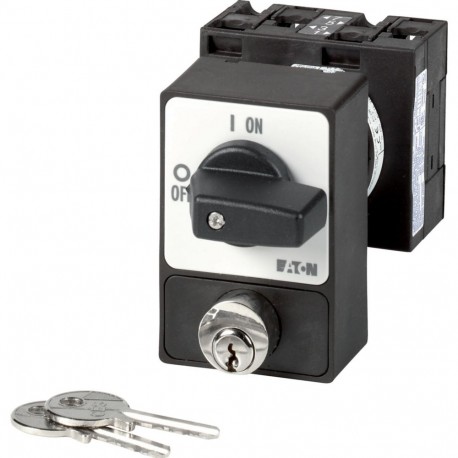

EATON - MOELLER T3-2-1/E/SVA(A) T3-2-1/E/SVA(A) 050982 Y7-50982 EATON ELECTRIC ON-OFF switches, 3 pole, 32 A, Cylinder lock SVA, front plate.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-1/E/SVA(A) 050982 Y7-50982 EATON ELECTRIC ON-OFF switches, 3 pole, 32 A, Cylinder lock SVA, front plate..

T3-2-1/E/SVA(A)

050982

Y7-50982

EATON - MOELLER

1 Pcs.

ON-OFF switches, 3 pole, 32 A, Cylinder lock SVA, front plate 0-1, 90 °, maintained, flush mounting, P ON-OFF 3-pole disconnector switch 32 A SVA cylindrical lock Eaton Moeller® series T3 ON-OFF switches, T3, 32 A, flush mounting, 3 pole, with black thumb grip and front plate, Cylinder lock SVA On-Off switch, Product range: Switch with locking mechanism, Part group reference: T3, with black thumb grip and front plate, Information about equipment supplied: with two keys, 3 pole, locking arrangement: Cylinder lock SVA, Notes: Key can only be withdrawn in position 0 (Pos A), Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped with a cylinder lock mechanism, the Eaton Moeller T3-2-1/E/SVA(A) 050982 Y7-50982 EATON ELECTRIC ON-OFF switches, 3 pole, 32 A, Cylinder lock SVA, front plate.. offers secure access control for electrical circuits. Lockable ON-OFF switches are widely utilized to prevent unauthorized operation of equipment during maintenance windows or operational shutdowns.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 3
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
050982
Model Code
T3-2-1/E/SVA(A)
EAN
4015080509820
Product Length/Depth
136 mm
Product Height
73 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
